Internal Halyard Illuminator
Request project pricing
Project pricing within one business day
Pricing depends on model, finish, power source, and quantity. Tell us about your project and our commercial team responds within one business day with pricing, recommendations, and BABA documentation as needed.
Authorized dealers and lighting reps: contact your FlagCo account manager for program pricing.
Buying for resale? See the Wholesale Partner ProgramThe Illuminator Standard V2 Series Internal Halyard Flagpole combines a high-quality internal halyard design with an innovative Flagpole Beacon, offering exceptional visibility and functionality.
Specifying through an engineer or lighting designer? Find your local representative.
Why the Internal Illuminator?
An internal winch flagpole and a FlagCo IH Beacon sold as one matched package: a concealed, locked halyard and a lit flag after dark, with no ground light to aim or maintain.

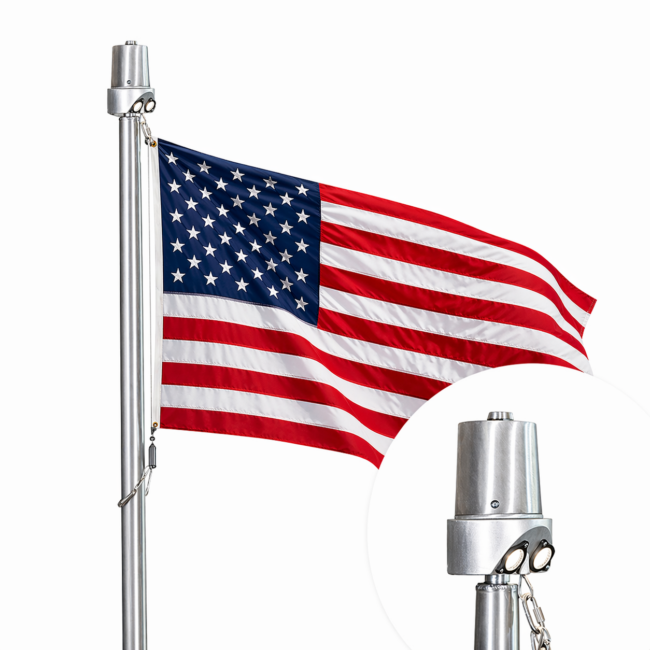

Light From the Top, Aimed at the Flag
The IH Beacon mounts at the top of the pole in place of the standard truck and ornament, and shines down on the flag. There is no ground spotlight to aim or reposition. The pole and beacon ship together as a matched package, and the beacon is installed on site when the pole goes up.
Concealed, Locked Halyard
A 1/8" stainless steel wire cable runs inside the pole, with no rope or cleat on the outside. It is reached only through an access door milled from the shaft, with a stainless steel hinge and cam lock. A strong fit for schools, government buildings and public sites where tampering or unauthorized lowering is a concern.
Mechanical Winch With Auto-Locking Brake
The flag is raised and lowered with a mechanical winch and a removable hand crank, working through the access door. The auto-locking brake holds the flag in place, and without the crank the flag cannot be lowered.
Fly the Flag Day and Night
The U.S. Flag Code (4 U.S.C. §6) says the flag may be displayed 24 hours a day when it is properly illuminated during the hours of darkness. Choose 120V AC for a hardwired connection, or 12V DC for solar, where the light turns on at dusk and off at dawn by itself. The Beacon is Intertek (ETL) listed.
Standard Specifications
Included Components
* The pole and beacon ship together as a matched package. The beacon is installed on site when the pole is erected, and 120V AC connections must be made by a licensed electrician. Solar power options are available; see Solar Options below.
Internal Illuminator: All Configurations
Filter by height or scroll to compare wind ratings. Available in heights from 20' to 40'. Beacon is Intertek (ETL) listed.
| Exposed Height |
Color | Voltage | Wall Thick. |
Top Dia. |
Butt Dia. |
Max Flag Size |
Wind Rating w/ Flag |
Wind Rating No Flag |
SKU |
|---|---|---|---|---|---|---|---|---|---|
| 20' | Anodized Black | 120V AC | 0.125" | 3" | 5" | 4' x 6' | Consult factory | Consult factory | 212446 |
| 20' | Anodized Black | 12V DC | 0.125" | 3" | 5" | 4' x 6' | Consult factory | Consult factory | 212446SOL |
| 20' | Anodized Clear | 120V AC | 0.125" | 3" | 5" | 4' x 6' | Consult factory | Consult factory | 204731 |
| 20' | Anodized Clear | 12V DC | 0.125" | 3" | 5" | 4' x 6' | Consult factory | Consult factory | 204731SOL |
| 20' | Anodized Dark Bronze | 120V AC | 0.125" | 3" | 5" | 4' x 6' | Consult factory | Consult factory | 204732 |
| 20' | Anodized Dark Bronze | 12V DC | 0.125" | 3" | 5" | 4' x 6' | Consult factory | Consult factory | 204732SOL |
| 20' | Satin | 120V AC | 0.125" | 3" | 5" | 4' x 6' | Consult factory | Consult factory | 204730 |
| 20' | Satin | 12V DC | 0.125" | 3" | 5" | 4' x 6' | Consult factory | Consult factory | 204730SOL |
| 20' | Anodized Black | 120V AC | 0.188" | 3" | 5" | 4' x 6' | 125 mph | 227 mph | 212421 |
| 20' | Anodized Black | 12V DC | 0.188" | 3" | 5" | 4' x 6' | 125 mph | 227 mph | 212421SOL |
| 20' | Anodized Clear | 120V AC | 0.188" | 3" | 5" | 4' x 6' | 125 mph | 227 mph | 204686 |
| 20' | Anodized Clear | 12V DC | 0.188" | 3" | 5" | 4' x 6' | 125 mph | 227 mph | 204686SOL |
| 20' | Anodized Dark Bronze | 120V AC | 0.188" | 3" | 5" | 4' x 6' | 125 mph | 227 mph | 204687 |
| 20' | Anodized Dark Bronze | 12V DC | 0.188" | 3" | 5" | 4' x 6' | 125 mph | 227 mph | 204687SOL |
| 20' | Satin | 120V AC | 0.188" | 3" | 5" | 4' x 6' | 125 mph | 227 mph | 204685 |
| 20' | Satin | 12V DC | 0.188" | 3" | 5" | 4' x 6' | 125 mph | 227 mph | 204685SOL |
| 25' | Anodized Black | 120V AC | 0.125" | 3" | 5" | 5' x 8' | Consult factory | Consult factory | 212463 |
| 25' | Anodized Black | 12V DC | 0.125" | 3" | 5" | 5' x 8' | Consult factory | Consult factory | 212463SOL |
| 25' | Anodized Clear | 120V AC | 0.125" | 3" | 5" | 5' x 8' | Consult factory | Consult factory | 204734 |
| 25' | Anodized Clear | 12V DC | 0.125" | 3" | 5" | 5' x 8' | Consult factory | Consult factory | 204734SOL |
| 25' | Anodized Dark Bronze | 120V AC | 0.125" | 3" | 5" | 5' x 8' | Consult factory | Consult factory | 204735 |
| 25' | Anodized Dark Bronze | 12V DC | 0.125" | 3" | 5" | 5' x 8' | Consult factory | Consult factory | 204735SOL |
| 25' | Satin | 120V AC | 0.125" | 3" | 5" | 5' x 8' | Consult factory | Consult factory | 204733 |
| 25' | Satin | 12V DC | 0.125" | 3" | 5" | 5' x 8' | Consult factory | Consult factory | 204733SOL |
| 25' | Anodized Black | 120V AC | 0.188" | 3.5" | 6" | 5' x 8' | 128 mph | 226 mph | 212441 |
| 25' | Anodized Black | 12V DC | 0.188" | 3.5" | 6" | 5' x 8' | 128 mph | 226 mph | 212441SOL |
| 25' | Anodized Clear | 120V AC | 0.188" | 3.5" | 6" | 5' x 8' | 128 mph | 226 mph | 204689 |
| 25' | Anodized Clear | 12V DC | 0.188" | 3.5" | 6" | 5' x 8' | 128 mph | 226 mph | 204689SOL |
| 25' | Anodized Dark Bronze | 120V AC | 0.188" | 3.5" | 6" | 5' x 8' | 128 mph | 226 mph | 204690 |
| 25' | Anodized Dark Bronze | 12V DC | 0.188" | 3.5" | 6" | 5' x 8' | 128 mph | 226 mph | 204690SOL |
| 25' | Satin | 120V AC | 0.188" | 3.5" | 6" | 5' x 8' | 128 mph | 226 mph | 204688 |
| 25' | Satin | 12V DC | 0.188" | 3.5" | 6" | 5' x 8' | 128 mph | 226 mph | 204688SOL |
| 25' | Anodized Black | 120V AC | 0.250" | 3.5" | 6" | 5' x 8' | Consult factory | Consult factory | 212362 |
| 25' | Anodized Black | 12V DC | 0.250" | 3.5" | 6" | 5' x 8' | Consult factory | Consult factory | 212362SOL |
| 25' | Anodized Clear | 120V AC | 0.250" | 3.5" | 6" | 5' x 8' | Consult factory | Consult factory | 204969 |
| 25' | Anodized Clear | 12V DC | 0.250" | 3.5" | 6" | 5' x 8' | Consult factory | Consult factory | 204969SOL |
| 25' | Anodized Dark Bronze | 120V AC | 0.250" | 3.5" | 6" | 5' x 8' | Consult factory | Consult factory | 204970 |
| 25' | Anodized Dark Bronze | 12V DC | 0.250" | 3.5" | 6" | 5' x 8' | Consult factory | Consult factory | 204970SOL |
| 25' | Satin | 120V AC | 0.250" | 3.5" | 6" | 5' x 8' | Consult factory | Consult factory | 204968 |
| 25' | Satin | 12V DC | 0.250" | 3.5" | 6" | 5' x 8' | Consult factory | Consult factory | 204968SOL |
| 30' | Anodized Black | 120V AC | 0.125" | 3" | 5" | 6' x 10' | Consult factory | Consult factory | 212459 |
| 30' | Anodized Black | 12V DC | 0.125" | 3" | 5" | 6' x 10' | Consult factory | Consult factory | 212459SOL |
| 30' | Anodized Clear | 120V AC | 0.125" | 3" | 5" | 6' x 10' | Consult factory | Consult factory | 204737 |
| 30' | Anodized Clear | 12V DC | 0.125" | 3" | 5" | 6' x 10' | Consult factory | Consult factory | 204737SOL |
| 30' | Anodized Dark Bronze | 120V AC | 0.125" | 3" | 5" | 6' x 10' | Consult factory | Consult factory | 204738 |
| 30' | Anodized Dark Bronze | 12V DC | 0.125" | 3" | 5" | 6' x 10' | Consult factory | Consult factory | 204738SOL |
| 30' | Satin | 120V AC | 0.125" | 3" | 5" | 6' x 10' | Consult factory | Consult factory | 204736 |
| 30' | Satin | 12V DC | 0.125" | 3" | 5" | 6' x 10' | Consult factory | Consult factory | 204736SOL |
| 30' | Anodized Black | 120V AC | 0.188" | 3.5" | 6" | 6' x 10' | 94 mph | 131 mph | 212437 |
| 30' | Anodized Black | 12V DC | 0.188" | 3.5" | 6" | 6' x 10' | 94 mph | 131 mph | 212437SOL |
| 30' | Anodized Clear | 120V AC | 0.188" | 3.5" | 6" | 6' x 10' | 94 mph | 131 mph | 204692 |
| 30' | Anodized Clear | 12V DC | 0.188" | 3.5" | 6" | 6' x 10' | 94 mph | 131 mph | 204692SOL |
| 30' | Anodized Dark Bronze | 120V AC | 0.188" | 3.5" | 6" | 6' x 10' | 94 mph | 131 mph | 204693 |
| 30' | Anodized Dark Bronze | 12V DC | 0.188" | 3.5" | 6" | 6' x 10' | 94 mph | 131 mph | 204693SOL |
| 30' | Satin | 120V AC | 0.188" | 3.5" | 6" | 6' x 10' | 94 mph | 131 mph | 204691 |
| 30' | Satin | 12V DC | 0.188" | 3.5" | 6" | 6' x 10' | 94 mph | 131 mph | 204691SOL |
| 30' | Anodized Black | 120V AC | 0.250" | 3.5" | 6" | 6' x 10' | 108 mph | 183 mph | 212367 |
| 30' | Anodized Black | 12V DC | 0.250" | 3.5" | 6" | 6' x 10' | 108 mph | 183 mph | 212367SOL |
| 30' | Anodized Clear | 120V AC | 0.250" | 3.5" | 6" | 6' x 10' | 108 mph | 183 mph | 204972 |
| 30' | Anodized Clear | 12V DC | 0.250" | 3.5" | 6" | 6' x 10' | 108 mph | 183 mph | 204972SOL |
| 30' | Anodized Dark Bronze | 120V AC | 0.250" | 3.5" | 6" | 6' x 10' | 108 mph | 183 mph | 204973 |
| 30' | Anodized Dark Bronze | 12V DC | 0.250" | 3.5" | 6" | 6' x 10' | 108 mph | 183 mph | 204973SOL |
| 30' | Satin | 120V AC | 0.250" | 3.5" | 6" | 6' x 10' | 108 mph | 183 mph | 204971 |
| 30' | Satin | 12V DC | 0.250" | 3.5" | 6" | 6' x 10' | 108 mph | 183 mph | 204971SOL |
| 35' | Anodized Black | 120V AC | 0.156" | 3.5" | 6" | 6' x 10' | 71 mph | 87 mph | 212455 |
| 35' | Anodized Black | 12V DC | 0.156" | 3.5" | 6" | 6' x 10' | 71 mph | 87 mph | 212455SOL |
| 35' | Anodized Clear | 120V AC | 0.156" | 3.5" | 6" | 6' x 10' | 71 mph | 87 mph | 204740 |
| 35' | Anodized Clear | 12V DC | 0.156" | 3.5" | 6" | 6' x 10' | 71 mph | 87 mph | 204740SOL |
| 35' | Anodized Dark Bronze | 120V AC | 0.156" | 3.5" | 6" | 6' x 10' | 71 mph | 87 mph | 204741 |
| 35' | Anodized Dark Bronze | 12V DC | 0.156" | 3.5" | 6" | 6' x 10' | 71 mph | 87 mph | 204741SOL |
| 35' | Satin | 120V AC | 0.156" | 3.5" | 6" | 6' x 10' | 71 mph | 87 mph | 204739 |
| 35' | Satin | 12V DC | 0.156" | 3.5" | 6" | 6' x 10' | 71 mph | 87 mph | 204739SOL |
| 35' | Anodized Black | 120V AC | 0.188" | 3.5" | 7" | 6' x 10' | 100 mph | 151 mph | 212432 |
| 35' | Anodized Black | 12V DC | 0.188" | 3.5" | 7" | 6' x 10' | 100 mph | 151 mph | 212432SOL |
| 35' | Anodized Clear | 120V AC | 0.188" | 3.5" | 7" | 6' x 10' | 100 mph | 151 mph | 204695 |
| 35' | Anodized Clear | 12V DC | 0.188" | 3.5" | 7" | 6' x 10' | 100 mph | 151 mph | 204695SOL |
| 35' | Anodized Dark Bronze | 120V AC | 0.188" | 3.5" | 7" | 6' x 10' | 100 mph | 151 mph | 204696 |
| 35' | Anodized Dark Bronze | 12V DC | 0.188" | 3.5" | 7" | 6' x 10' | 100 mph | 151 mph | 204696SOL |
| 35' | Satin | 120V AC | 0.188" | 3.5" | 7" | 6' x 10' | 100 mph | 151 mph | 204694 |
| 35' | Satin | 12V DC | 0.188" | 3.5" | 7" | 6' x 10' | 100 mph | 151 mph | 204694SOL |
| 35' | Anodized Black | 120V AC | 0.250" | 3.5" | 8" | 6' x 10' | Consult factory | Consult factory | 212372 |
| 35' | Anodized Black | 12V DC | 0.250" | 3.5" | 8" | 6' x 10' | Consult factory | Consult factory | 212372SOL |
| 35' | Anodized Clear | 120V AC | 0.250" | 3.5" | 8" | 6' x 10' | Consult factory | Consult factory | 204975 |
| 35' | Anodized Clear | 12V DC | 0.250" | 3.5" | 8" | 6' x 10' | Consult factory | Consult factory | 204975SOL |
| 35' | Anodized Dark Bronze | 120V AC | 0.250" | 3.5" | 8" | 6' x 10' | Consult factory | Consult factory | 204976 |
| 35' | Anodized Dark Bronze | 12V DC | 0.250" | 3.5" | 8" | 6' x 10' | Consult factory | Consult factory | 204976SOL |
| 35' | Satin | 120V AC | 0.250" | 3.5" | 8" | 6' x 10' | Consult factory | Consult factory | 204974 |
| 35' | Satin | 12V DC | 0.250" | 3.5" | 8" | 6' x 10' | Consult factory | Consult factory | 204974SOL |
| 40' | Anodized Black | 120V AC | 0.156" | 3.5" | 7" | 8' x 12' | 72 mph | 90 mph | 212451 |
| 40' | Anodized Black | 12V DC | 0.156" | 3.5" | 7" | 8' x 12' | 72 mph | 90 mph | 212451SOL |
| 40' | Anodized Clear | 120V AC | 0.156" | 3.5" | 7" | 8' x 12' | 72 mph | 90 mph | 204743 |
| 40' | Anodized Clear | 12V DC | 0.156" | 3.5" | 7" | 8' x 12' | 72 mph | 90 mph | 204743SOL |
| 40' | Anodized Dark Bronze | 120V AC | 0.156" | 3.5" | 7" | 8' x 12' | 72 mph | 90 mph | 204744 |
| 40' | Anodized Dark Bronze | 12V DC | 0.156" | 3.5" | 7" | 8' x 12' | 72 mph | 90 mph | 204744SOL |
| 40' | Satin | 120V AC | 0.156" | 3.5" | 7" | 8' x 12' | 72 mph | 90 mph | 204742 |
| 40' | Satin | 12V DC | 0.156" | 3.5" | 7" | 8' x 12' | 72 mph | 90 mph | 204742SOL |
| 40' | Anodized Black | 120V AC | 0.188" | 3.5" | 8" | 8' x 12' | 102 mph | 153 mph | 212428 |
| 40' | Anodized Black | 12V DC | 0.188" | 3.5" | 8" | 8' x 12' | 102 mph | 153 mph | 212428SOL |
| 40' | Anodized Clear | 120V AC | 0.188" | 3.5" | 8" | 8' x 12' | 102 mph | 153 mph | 204698 |
| 40' | Anodized Clear | 12V DC | 0.188" | 3.5" | 8" | 8' x 12' | 102 mph | 153 mph | 204698SOL |
| 40' | Anodized Dark Bronze | 120V AC | 0.188" | 3.5" | 8" | 8' x 12' | 102 mph | 153 mph | 204699 |
| 40' | Anodized Dark Bronze | 12V DC | 0.188" | 3.5" | 8" | 8' x 12' | 102 mph | 153 mph | 204699SOL |
| 40' | Satin | 120V AC | 0.188" | 3.5" | 8" | 8' x 12' | 102 mph | 153 mph | 204697 |
| 40' | Satin | 12V DC | 0.188" | 3.5" | 8" | 8' x 12' | 102 mph | 153 mph | 204697SOL |
| 40' | Anodized Black | 120V AC | 0.250" | 3.5" | 8" | 8' x 12' | 123 mph | 186 mph | 212357 |
| 40' | Anodized Black | 12V DC | 0.250" | 3.5" | 8" | 8' x 12' | 123 mph | 186 mph | 212357SOL |
| 40' | Anodized Clear | 120V AC | 0.250" | 3.5" | 8" | 8' x 12' | 123 mph | 186 mph | 204978 |
| 40' | Anodized Clear | 12V DC | 0.250" | 3.5" | 8" | 8' x 12' | 123 mph | 186 mph | 204978SOL |
| 40' | Anodized Dark Bronze | 120V AC | 0.250" | 3.5" | 8" | 8' x 12' | 123 mph | 186 mph | 204979 |
| 40' | Anodized Dark Bronze | 12V DC | 0.250" | 3.5" | 8" | 8' x 12' | 123 mph | 186 mph | 204979SOL |
| 40' | Satin | 120V AC | 0.250" | 3.5" | 8" | 8' x 12' | 123 mph | 186 mph | 204977 |
| 40' | Satin | 12V DC | 0.250" | 3.5" | 8" | 8' x 12' | 123 mph | 186 mph | 204977SOL |
Wind ratings per ANSI/NAAMM FP 1001-07, from the FlagCo Cut Sheet Builder. "Wind Rating w/ Flag" assumes the recommended flag size shown. "Consult factory" means the rating for that configuration is not published yet; call 800-962-0956. Each pole ships as a matched package with a FlagCo 6.5" IH Beacon (IH Beacon on 20' and 25', IH Beacon Plus on 30' to 40'; 120V AC, or 12V DC for solar), 1/8" stainless steel cable halyard with mechanical winch, locking access door, cast aluminum flash collar, and galvanized steel ground sleeve. The beacon mounts at the top of the pole in place of the standard truck and ornament and is installed on site.
Trusted by Schools, Hospitals & Government Facilities
What Our Customers Say
Frequently Asked Questions
How does the Illuminator work, and how is the beacon installed?
The Internal Illuminator is an internal winch flagpole and a FlagCo 6.5″ IH Beacon sold as one matched package: the IH Beacon on 20′ and 25′ poles, and the IH Beacon Plus on 30′ to 40′. The beacon mounts at the top of the pole in place of the standard truck and ornament and shines down on the flag. It ships with the pole and is installed on site when the pole goes up. It comes pre-wired, with a lead the length of the pole plus 10 feet.
Should I choose 120V AC or solar?
Can I fly the American flag at night with this pole?
What wind speed can these flagpoles withstand, and what size flag can I fly?
It depends on the height, butt diameter and wall thickness. For example, a 25′ pole with a 6″ butt and 0.188″ wall is rated 128 mph with a flag, and a 40′ pole with an 8″ butt and 0.250″ wall is rated 123 mph with a flag. The table above lists the rating with and without a flag, and the recommended flag size, for every configuration: 4′ x 6′ on 20′, 5′ x 8′ on 25′, 6′ x 10′ on 30′ and 35′, and 8′ x 12′ on 40′. Not sure what your site needs? Look up the design wind speed for your ZIP code with our Wind Speed by ZIP tool, then pick a pole in the table that meets it, or call 800-962-0956.
Do I need a foundation? What's included?
Yes. These poles are set in a concrete foundation. Every pole ships with a 16-gauge hot-dip galvanized steel ground sleeve with a grounding spike and a 1/4″ steel base plate with a 1/4″ steel support plate. Set depth is 10% of the exposed height: 2′ for a 20′ pole, 2.5′ for 25′, 3′ for 30′, 3.5′ for 35′ and 4′ for 40′. For 120V AC poles, plan the conduit entry and electrical rough-in before the foundation is poured. We send ground sleeve installation instructions that show where the conduit comes in.
How long does shipping take?
Beacons have a production lead time of 15 business days from order confirmation and deposit. After production, standard LTL freight typically takes 2 to 4 weeks. An expedited dedicated truck (1 to 3 days) and same-day local delivery within a 4-hour drive of Acworth, GA are also available. Call 800-962-0956 for freight options and cost to your address, or see our Standard Lead Times page.
Built by People Who Know Flagpoles
FlagCo has been designing, engineering, and manufacturing aluminum flagpoles in Acworth, Georgia since 1989. Our team can help you pick the right height, wall thickness, and halyard system for your site.
Not Sure Which Configuration You Need?
Call our flagpole specialists for a free consultation. We'll walk you through sizing, wind load requirements, and installation planning. Or look up the design wind speed for your project ZIP code first, then pick the pole that meets it in the table above.
