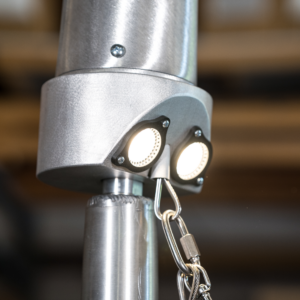

At 800 lumens on every power source and 3000K color temperature, the 6.5" Internal Halyard Beacon provides effective illumination for flags up to approximately 5 feet by 8 feet. For larger flags on taller poles, a higher-output Plus model may be appropriate. The output is calibrated for pole-top delivery, where the source sits inches from the flag rather than tens of feet below it, making the effective illuminance on the flag surface significantly higher than the raw lumen count suggests.

The 6.5" Internal Halyard Beacon is rated for internal halyard poles with a top outside diameter of up to 3.5 inches. Before ordering, measure your pole's top outside diameter and confirm it runs an internal halyard system (internal winch or internal cam cleat). External halyard poles use a different beacon model. Internal halyard poles with a top diameter larger than 3.5 inches use a larger IH beacon. See the Beacon Resources page for the full compatibility matrix.

Yes. The 6.5" Internal Halyard Beacon is compatible with both internal winch and internal cam cleat flagpoles, as long as the pole top outside diameter is 3.5 inches or less. Both systems conceal the halyard inside the pole shaft, and the beacon mounts at the pole top in the same way. It is not compatible with external halyard poles, which use an exposed halyard and a revolving truck; those poles use the External Halyard Beacon instead.

When ordered as part of a FlagCo Illuminator Package (flagpole plus beacon), the beacon and pole ship together but as separate components. The beacon is not factory-installed on the pole. The installer mounts the beacon on site during pole erection. This is standard practice: pole-top hardware is always installed in the field after the shaft is set in the foundation sleeve, never before, since the beacon must be wired through the pole interior before final assembly.

The 6.5" Internal Halyard Beacon is available in Satin, Bronze, Black, or White. Satin is the standard match for mill-finish and satin-anodized aluminum poles. Bronze suits masonry and earth-tone facades. Black suits modern architecture and black poles. White suits coastal sites and light-colored poles. Pricing is quoted per project and varies with the finish selected. Use the Cut Sheet Builder to generate a cut sheet with your exact configuration for submittal, or call 800-962-0956 to confirm pricing on a specific finish.

Yes. The 6.5" Internal Halyard Beacon qualifies for DarkSky International approval when specified with the optional integrated Beacon Visor accessory. DarkSky International (formerly the International Dark-Sky Association, darksky.org) issues approval for fixtures that meet criteria for minimizing upward luminous flux and light trespass. To add the visor to your order and obtain the DarkSky documentation needed for a submittal package or dark-sky ordinance compliance demonstration, contact FlagCo at 800-962-0956.

Yes. The FlagCo commercial warranty provides 3 years of coverage from the date of substantial completion when the beacon is installed and used in accordance with the provided installation instructions and applicable local codes. The LED modules are designed for a long service life and are field-replaceable if needed. The warranty covers defects in material and workmanship. It does not cover damage from improper installation, misuse, or acts of nature outside the rated wind conditions for the pole. Contact FlagCo at 800-962-0956 for warranty claim or replacement part inquiries.

Yes. The 6.5" Internal Halyard Flagpole Beacon is manufactured and assembled in Acworth, Georgia by FlagCo (Global Flags Unlimited, LLC), a veteran-owned small business. It meets the requirements of the Build America, Buy America Act (BABA) for manufactured products used in federally-funded infrastructure projects, and it is also compliant with the Buy American Act (BAA) for direct federal agency purchases. BABA compliance documentation is available on request for federal agency submittals, grant-funded projects, and GSA procurement. Contact 800-962-0956 for documentation.
